Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 7 | 36 31 1 230 322 | COMPRESSION RING | - | |
| 8 | 36 31 1 233 247 | SHAFT SEAL - 36X22X8 | - | |
36 31 1 235 838 | SHAFT SEAL - 22X40X7Alternative for position 8 | - | ||
36 31 1 240 238 | SHAFT SEAL - 22X40X7Alternative for position 8 | - | ||
| 10 | 07 11 9 901 309 | HEX NUT - M14X1,5 | - | |
| 11 | 34 11 1 233 020 | WASHER | - | |
| 12 | 36 31 1 233 491 | BUSH | - | |
| 13 | 34 11 1 233 490 | QUICK-RELEASE AXLE - D=17MM/L=253MM | - | |
34 11 1 233 490S | FRONT AXLEAlternative for position 13 | - |

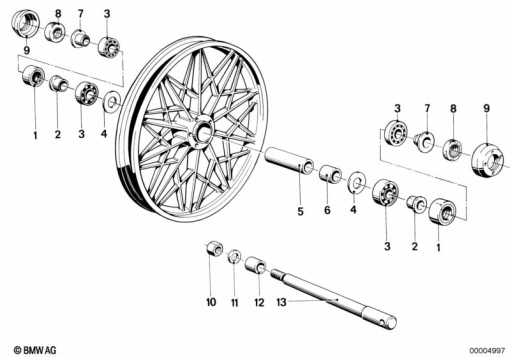

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
