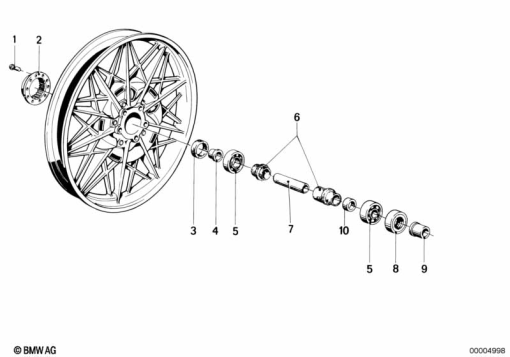

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 900 800 | RIVET - 6X25 | - | |
| 2 | 36 31 1 232 525 | DRIVING DOG | - | |
| 3 | 36 31 1 235 833 | SHAFT SEAL | - | |
| 4 | 36 31 2 301 737 | SLEEVE - 10,7MM | - | |
36 31 4 038 142 | SLEEVE - 9,2MMAlternative for position 4 | - | ||
| 5 | 07 11 9 985 005 | TAPERED ROLLER BEARING - 40X17X13.25 | - | |
| 6 | 36 31 1 237 595 | RING | - | |
| 7 | 36 31 1 238 875 | PIPE | - | |
| 8 | 36 31 1 235 838 | SHAFT SEAL - 22X40X7 | - | |
36 31 1 240 238 | SHAFT SEAL - 22X40X7Alternative for position 8 | - | ||
| 9 | 36 31 1 230 322 | COMPRESSION RING | - |
