R80 (2477) | Wheels

CAST RIM MOUNTING PARTS

Diagram #36_0159 | 36 parts | 1 available in shop

100%

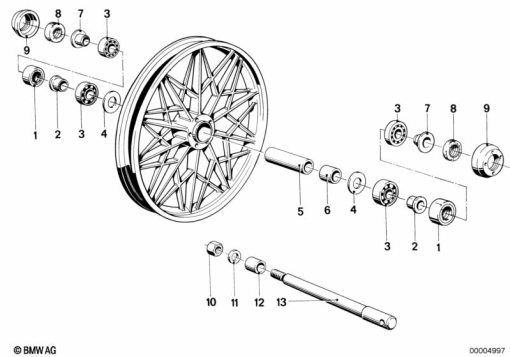

R80 (2477) CAST RIM MOUNTING PARTS exploded view parts diagram

Parts List (36)

#Part NumberDescriptionQty
1
36 31 1 235 838
SHAFT SEAL - 22X40X71
1
36 31 1 240 238
SHAFT SEAL - 22X40X71
2
36 31 1 230 322
COMPRESSION RING1
3
07 11 9 985 005
TAPERED ROLLER BEARING - 40X17X13.251
4
36 31 1 237 595
RING1
5
36 31 1 236 140
PIPE1
5
36 31 1 237 606
PIPE (from 09/78)1
6
36 31 1 230 781
SHIM - 6,300MM/D=17MM1
6
36 31 1 230 782
SHIM - 6,350MM/D=17MM1
6
36 31 1 230 783
SHIM - 6,400MM/D=17MM1
6
36 31 1 230 784
SHIM - 6,450MM/D=17MM1
6
36 31 1 230 785
SHIM - 6,500MM/D=17MM1
6
36 31 1 230 786
SHIM - 6,550MM/D=17MM1
6
36 31 1 230 787
SHIM - 6,600MM/D=17MM1
6
36 31 1 230 788
SHIM - 6,700MM/D=17MM1
6
36 31 1 230 789
SHIM - 6,800MM/D=17MM1
6
36 31 1 231 240
SHIM - 6,650MM/D=17MM1
6
36 31 1 231 241
SHIM - 6,750MM/D=17MM1
6
36 31 1 231 242
SHIM - 6,850MM/D=17MM1
6
36 31 1 231 243
SHIM - 6,900MM/D=17MM1
6
36 31 1 231 244
SHIM - 6,950MM/D=17MM1
6
36 31 1 231 245
SHIM - 7,000MM/D=171
6
36 31 1 231 246
SHIM - 7,050MM/D=171
6
36 31 1 231 247
SHIM - 7,100MM/D=171
6
36 31 1 231 248
SHIM - 7,150MM/D=171
6
36 31 1 231 249
SHIM - 7,200MM/D=171
6
36 31 2 302 093
SHIM - 7,250MM/D=171
6
36 31 2 302 094
SHIM - 7,300MM/D=171
6
36 31 2 302 095
SHIM - 7,350MM/D=171
6
36 31 2 302 096
SHIM - 7,400MM/D=171
6
36 31 2 302 097
SHIM - 7,450MM/D=171
6
36 31 2 302 098
SHIM - 7,500MM/D=171
6
36 31 2 302 099
SHIM - 7,550MM/D=171
6
36 31 2 302 170
SHIM - 7,600MM/D=171
6
36 31 2 302 171
SHIM - 7,650MM/D=171
6
36 31 2 302 172
SHIM - 7,700MM/D=171
