R80 (2477) | Transmission
INTERNAL SHIFTING PARTS/SHIFTING CAM

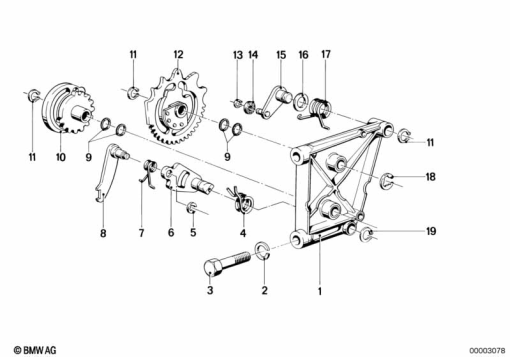

Diagram #23_0268 | 19 parts | 1 available in shop
100%
Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 31 1 234 386 | SUPPORTING BRACKET | 1 | |
| 2 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 | 1 | |
| 3 | 23 31 1 231 614 | SCREW | 1 | |
| 4 | 23 31 1 231 618 | SPRING | 1 | |
| 5 | 07 11 9 932 841 | CIRCLIP - D=6MM | 1 | |
| 6 | 23 31 1 231 578 | SEGMENT SHAFT | 1 | |
| 7 | 23 31 1 242 910 | SPRING | 1 | |
| 8 | 23 31 1 242 892 | PAWL | 1 | |
| 9 | 23 31 1 232 599 | O-RING - 8X2B | 1 | |
| 10 | 23 31 1 451 563 | SHIFTING CAM - 3/4 GANG | 1 | |
| 11 | 07 11 9 934 060 | LOCK RING - 12X1,0 | 1 | |
| 12 | 23 31 1 231 611 | SHIFTING CAM - 1/2/5 GANG | 1 | |
| 13 | 07 11 9 934 035 | LOCK RING - 8X0,8 | 1 | |
| 14 | 23 31 1 231 572 | ROLL PIN | 1 | |
| 15 | 23 31 1 231 575 | LEVER | 1 | |
| 16 | 07 11 9 932 631 | SHIM - 18X12X1 | 1 | |
| 17 | 23 31 1 234 791 | SPRING | 1 | |
| 18 | 07 11 9 904 911 | CIRCLIP - 10-ZNS3 | 1 | |
| 19 | 07 11 9 934 082 | LOCK RING - 15X1-ZN | 1 |
