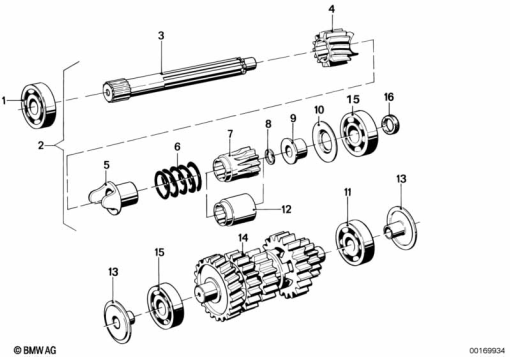

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 1 235 449 | CYLINDRICAL ROLLER BEARING,RADIAL - 20X47X14 | - | |
| 2 | 23 21 2 301 776 | DRIVE SHAFT KICK STARTER - 17,5DEG/D=35,5 (to 09/80) | - | |
23 21 2 301 778 | DRIVE SHAFT - 17,5DEG/D=35,5 (to 09/80)Alternative for position 2 | - | ||
| - | 23 21 1 242 996 | INTERMEDIATE SHAFT - 17.5°DEG (to 09/80) | - | |
| 3 | 23 21 1 231 516 | DRIVE SHAFT - D=18MM (to 09/80) | - | |
| 4 | 23 21 1 231 519 | GEAR WHEEL - 15°DEG / D=30 (to 04/82) | - | |
| 5 | 23 21 1 233 425 | THRUST ADAPTER - D=35,5 (to 03/85) | - | |
| 6 | 23 21 1 231 303 | COMPRESSION SPRING | - | |
| 7 | 23 21 1 231 671 | GEAR WHEEL - Z=11 (to 09/80) | - | |
| 8 | 07 11 9 933 516 | SNAP RING - A20 | - | |
23 21 1 232 086 | SNAP RING - A18Alternative for position 8 | - | ||
| 9 | 23 21 1 232 062 | BUSH | - | |
| 10 | 23 21 1 230 452 | COVER - 1.00MM | - | |
| 11 | 23 12 1 231 495 | GROOVED BALL BEARING - 6304 C3 | - | |
| 13 | 23 11 1 233 835 | WASHER | - | |
| 14 | 23 21 1 237 798 | INTERMEDIATE SHAFT - 15 DEG (to 04/82) | - | |
| 15 | 23 12 1 233 808 | GROOVED BALL BEARING - 6304 C3 RS | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
