R80 (2477) | Transmission

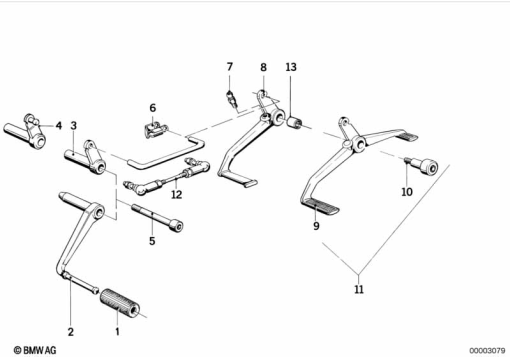

EXTERNAL SHIFTING PARTS/SHIFT LEVER
Diagram #23_0269 | 12 parts | 5 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 31 1 232 097 | BUSHING | 1 | |
| 2 | 23 31 1 231 621 | SHIFT LEVER | 1 | |
| 4 | 23 31 2 302 228 | SHIFT LEVER | 1 | |
| 5 | 23 11 2 322 402 | FILLISTER-HEAD SCREW - M6X80 | 1 | |
| 6 | 23 41 1 236 746 | BOOT | 1 | |
| 7 | 23 41 1 238 306 | NIPPLE | 1 | |
| 8 | 23 41 1 241 593 | SHIFT LEVER | 1 | |
| 8 | 23 41 1 241 592 | SHIFT LEVER | 1 | |
| 1 | 23 13 1 238 422 | NEEDLE SLEEVE - 12X18X16 | 1 | |
| 9 | 23 41 1 239 023 | GEAR CHANGE LEVER (to 09/80) | 1 | |
| 10 | 23 41 1 241 595 | SCREW - 33,5 | 1 | |
| 13 | 23 13 1 238 422 | NEEDLE SLEEVE - 12X18X16 | 1 |
