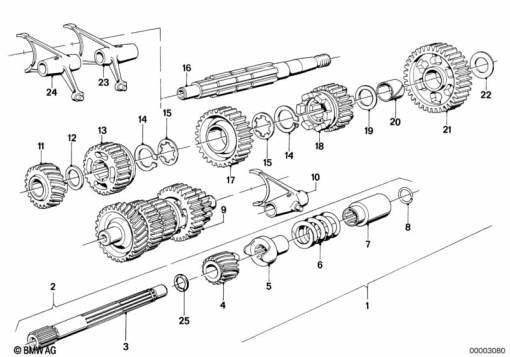

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 21 2 301 798 | SET: RETROFIT KIT, GEARBOX - RS / 17.5°DEG (to 09/80) | - | |
| 2 | 23 21 1 233 426 | DRIVE SHAFT (to 09/80) | - | |
| 3 | 23 21 1 231 516 | DRIVE SHAFT - D=18MM (to 09/80) | - | |
| 4 | 23 21 1 231 519 | GEAR WHEEL - 15°DEG / D=30 (to 04/82) | - | |
23 22 1 242 991 | GEAR WHEEL - 17.5°DEG / D=30Alternative for position 4 | - | ||
| 5 | 23 21 1 233 425 | THRUST ADAPTER - D=35,5 | - | |
| 6 | 23 21 1 231 303 | COMPRESSION SPRING | - | |
| 8 | 23 21 1 232 086 | SNAP RING - A18 | - | |
| 9 | 23 21 2 301 774 | INTERMEDIATE SHAFT - RS | - | |
| - | 23 22 1 242 991 | GEAR WHEEL - 17.5°DEG / D=30 | - | |
| - | 23 22 1 242 992 | GEAR WHEEL 5TH GEAR - 17.5°DEG | - | |
| 10 | 23 31 1 234 217 | SHIFTING FORK 3RD AND 4TH GEAR | - | |
| 11 | 23 22 1 234 889 | GEAR WHEEL 5TH GEAR - 15°DEG (to 04/82) | - | |
23 22 1 242 992 | GEAR WHEEL 5TH GEAR - 17.5°DEGAlternative for position 11 | - | ||
| 12 | 23 21 1 231 616 | SHIM - 2.000MM | - | |
| 13 | 23 22 1 234 887 | GEAR WHEEL 3RD GEAR - RS | - | |
| 14 | 07 11 9 907 340 | LOCK RING - 28X1,5 | - | |
| 15 | 23 21 1 231 633 | WASHER | - | |
| 16 | 23 21 1 338 793 | OUTPUT SHAFT | - | |
| - | 23 12 1 338 795 | GROOVED BALL BEARING - 62X17X17 | - | |
| - | 07 11 9 934 100 | LOCK RING - 17X1 | - | |
| 17 | 23 22 1 233 417 | GEAR WHEEL, 2ND GEAR - RS | - | |
| 18 | 23 22 1 234 213 | GEAR WHEEL 4TH GEAR | - | |
| 19 | 23 21 1 454 099 | SHIM - 1.000MM | - | |
| 20 | 23 21 1 232 299 | BUSH | - | |
| 21 | 23 22 1 233 413 | GEAR WHEEL 1ST GEAR - RS | - | |
| 22 | 23 21 1 231 630 | WASHER | - | |
| 23 | 23 31 1 234 219 | SHIFTING FORK 5ST GEAR | - | |
| 24 | 23 31 1 234 215 | SHIFTING FORK 1ST AND 2ND GEAR | - | |
| 25 | 23 12 1 242 522 | SHAFT SEAL - 8X14X4 (to 09/80) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
