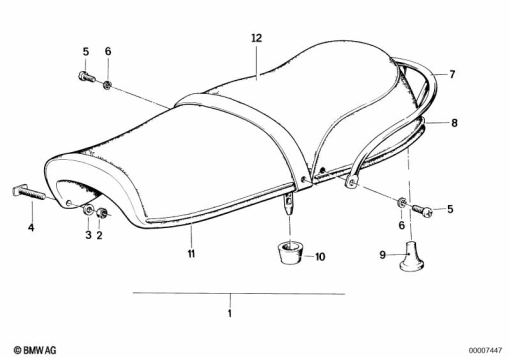

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 237 832 | BENCH SEAT | - | |
| 2 | 07 11 9 922 016 | HEX NUT - M3 | - | |
| 3 | 07 11 9 931 015 | WASHER - A3,2 | - | |
| 4 | 52 53 1 231 319 | SCREW | - | |
| 5 | 07 11 9 907 639 | FILLISTER HEAD SCREW - M5X10 | - | |
| 6 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 7 | 52 53 1 232 966 | HANDLE | - | |
| 8 | 52 53 1 234 676 | DECORATIVE STRIP - VORGEBOGEN | - | |
| 9 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | - | |
| 10 | 52 53 1 452 296 | BUMP STOP | - | |
| 11 | 52 53 1 234 675 | DECORATIVE STRIP | - |
