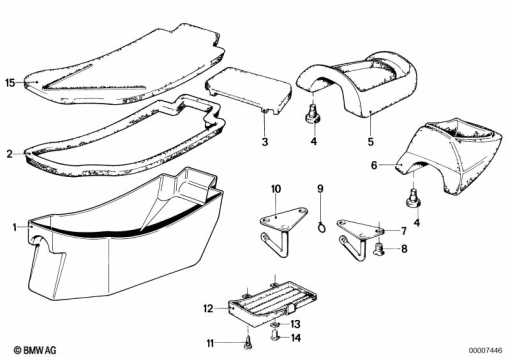

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 232 640 | TOOL BOX | - | |
| 2 | 52 53 1 232 683 | GASKET | - | |
| 4 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | - | |
| 5 | 52 53 1 232 666 | STORING PARTITION | - | |
| 7 | 52 53 1 236 351 | HINGE | - | |
| 8 | 07 11 9 900 810 | SCREW | - | |
07 11 9 900 810BO | CSUNK SCREW M6X10 BLK OXIDEAlternative for position 8 | - | ||
07 11 9 900 811 | COUNTERSUNK HEAD SCREW - M6X10Alternative for position 8 | - | ||
| 9 | 07 12 9 934 319 | CLAMPING PLATE - D=6MM | - | |
| 10 | 52 53 1 230 314 | HINGE | - | |
| 11 | 07 11 9 904 170 | SCREW | - | |
| 12 | 52 53 1 234 719 | FLAP | - | |
| 13 | 07 11 9 931 015 | WASHER - A3,2 | - | |
| 14 | 07 12 9 948 742 | RIVET - 3,2-3A | - | |
| 15 | 52 53 1 240 500 | COVER (from 08/79) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
