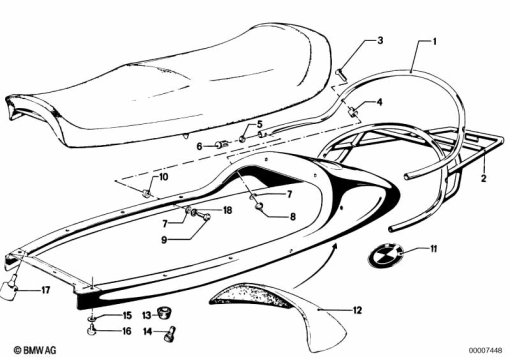

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 1 234 635 | BOW - BLACK | - | |
| 2 | 52 53 1 239 300 | BAGGAGE PORTER - CHROME | - | |
| 3 | 07 11 9 928 534 | COUNTERSUNK HEAD SCREW - M6X35 | - | |
07 11 9 903 257 | COUNTERSUNK HEAD SCREW - M6X35Alternative for position 3 | - | ||
| 4 | 52 53 1 232 458 | SLEEVE | - | |
| 5 | 07 11 9 921 438 | SQUARE NUT - M6 | - | |
| 6 | 52 53 1 232 457 | PLUG | - | |
| 7 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 7 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 7 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 7 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 7 | - | ||
| 8 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 12 9 905 817 | HEX NUTAlternative for position 8 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 8 | - | ||
| 9 | 07 11 9 913 015 | HEX BOLT - M6X16-8.8-ZNS | - | |
| 10 | 52 53 1 232 459 | WASHER | - | |
| 11 | 46 63 7 686 746 | BADGE - D=70MM | - | |
| 12 | 52 53 1 233 313 | GASKET | - | |
| 13 | 52 53 1 452 296 | BUMP STOP | - | |
| 14 | 52 53 1 230 319 | RUBBER SUPPORT - D=18MM | - | |
| 15 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 16 | 07 11 9 907 639 | FILLISTER HEAD SCREW - M5X10 | - | |
| 17 | 52 53 1 232 904 | SUPPORT - H=16 | - | |
| 18 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 18 | - |
