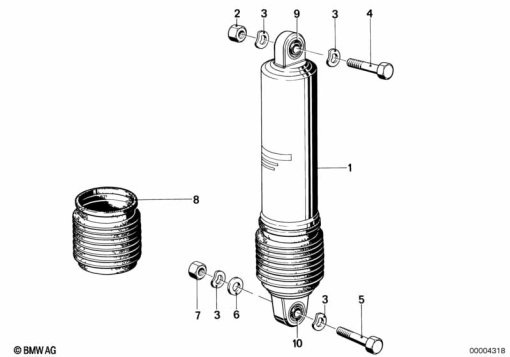

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 53 2 301 545 | SELF-LEVELLING SUSPENSION | - | |
| 2 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | - | |
| 3 | 07 11 9 932 122 | WAVE WASHER - B10-ZNS (to 01/85) | - | |
07 11 9 904 463 | WAVE WASHER - B10-ZNS3Alternative for position 3 | - | ||
| 4 | 07 11 9 901 169 | HEX BOLT - M10X45-8.8-ZNS3 | - | |
| 5 | 33 53 1 230 249 | HEX BOLT | - | |
| 7 | 07 11 9 900 079 | HEX NUT - M10X1 (to 01/85) | - | |
07 11 9 901 301 | HEX NUT - M10X1 FLACHAlternative for position 7 | - | ||
07 12 9 922 436 | SELF-LOCKING HEX NUT - M10X1Alternative for position 7 | - | ||
| 8 | 33 53 1 240 811 | RUBBER BOOT | - | |
| 9 | 33 53 2 301 586 | RUBBER MOUNTING | - | |
| 10 | 33 53 1 230 258 | RUBBER MOUNTING | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
