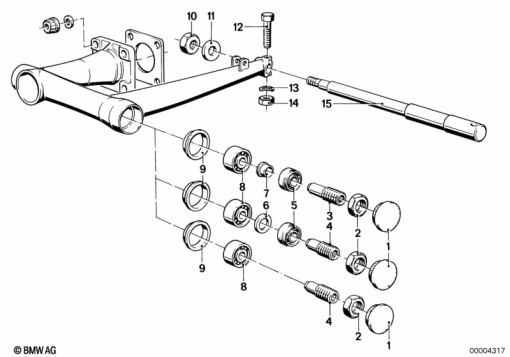

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 17 1 230 296 | 0.01 | - | |
| 2 | 33 53 3 054 174 | HEX NUT | - | |
| 3 | 33 17 1 230 301 | PIVOT PIN - L=48MM (to 09/80) | - | |
| 5 | 31 41 1 233 252 | SHAFT SEAL - 22X40X10 (to 09/80) | - | |
| 7 | 36 31 4 038 142 | SLEEVE - 9,2MM (to 09/80) | - | |
| 8 | 07 11 9 985 005 | TAPERED ROLLER BEARING | - | |
| 9 | 33 17 1 239 812 | COVER | - | |
| 10 | 07 11 9 901 309 | HEX NUT - M14X1,5 | - | |
| 11 | 33 41 1 232 709 | WASHER (to 09/80) | - | |
| 12 | 07 11 9 906 650 | FILLISTER-HEAD SCREW - M8X35-10.9-ZNS3 | - | |
| 13 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 14 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 14 | - | ||
| 15 | 33 41 1 230 303 | PLUG TYPE AXLE DRUM BRAKE - D=17MM/L=296MM | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
