R80 (2477) | Rear Axle & Suspension

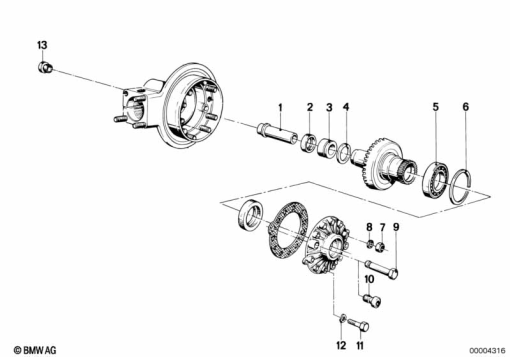

REAR-AXLE-DRIVE PARTS
Diagram #33_0633 | 31 parts | 5 available in shop
100%
Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 12 1 230 257 | BUSH (to 09/80) | 1 | |
| 2 | 33 12 2 301 019 | GASKET RING - 30X42X7 | 1 | |
| 2 | 33 12 3 004 337 | newer alt part # Shaft seal ( 30.42.7 ) | 1 | |
| 2 | 33 12 2 301 019 | GASKET RING - 30X42X7 | 1 | |
| 2 | 33 12 3 004 337 | newer alt part # Shaft seal ( 30.42.7 ) | 1 | |
| 3 | 33 12 1 242 739 | NEEDLE BEARING - 32X47X24.5 | 1 | |
| 4 | 33 12 1 230 527 | COMPRESSION RING - 1,8MM | 1 | |
| 4 | 33 12 1 230 528 | COMPRESSION RING - 2,0MM | 1 | |
| 4 | 33 12 1 230 529 | COMPRESSION RING - 2,2MM | 1 | |
| 4 | 33 12 1 230 530 | COMPRESSION RING - 2,3MM | 1 | |
| 4 | 33 12 1 230 531 | COMPRESSION RING - 2,4MM | 1 | |
| 4 | 33 12 1 230 532 | COMPRESSION RING - 2,5MM | 1 | |
| 4 | 33 12 1 230 533 | COMPRESSION RING - 2,6MM | 1 | |
| 4 | 33 12 1 231 238 | COMPRESSION RING - 1,9MM | 1 | |
| 4 | 33 12 1 231 239 | COMPRESSION RING - 2,1MM | 1 | |
| 4 | 33 12 1 232 769 | COMPRESSION RING - 1,7MM | 1 | |
| 4 | 33 12 1 238 931 | COMPRESSION RING - 1,5MM | 1 | |
| 4 | 33 12 1 238 932 | COMPRESSION RING - 1,6MM | 1 | |
| 5 | 07 11 9 981 760 | GROOVED BALL BEARING - 16013 | 1 | |
| – | Ball bearing 16013. | Ball bearing 16013. | 1 | |
| 6 | 33 12 1 230 535 | SHIM - 90X99,8X0,180MM | 1 | |
| 6 | 33 12 1 230 536 | SHIM - 90X99,8X0,280MM | 1 | |
| 6 | 33 12 1 230 537 | SHIM - 90X99,8X0,380MM | 1 | |
| 6 | 33 12 1 230 538 | SHIM - 90X99,8X0,500MM | 1 | |
| 6 | 33 12 1 230 539 | SHIM - 90X99,8X0,630MM | 1 | |
| 6 | 33 12 1 230 540 | SHIM - 90X99,8X0,750MM | 1 | |
| 6 | 33 12 1 230 541 | SHIM - 90X99,8X0,880MM | 1 | |
| 7 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | 1 | |
| 7 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | 1 | |
| 8 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | 1 | |
| 9 | 33 11 1 234 559 | PIN (to 09/80) | 1 |
