R80 (2477) | Rear Axle & Suspension

SPRING STRUT, REAR

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #33_0625 | 27 parts

100%

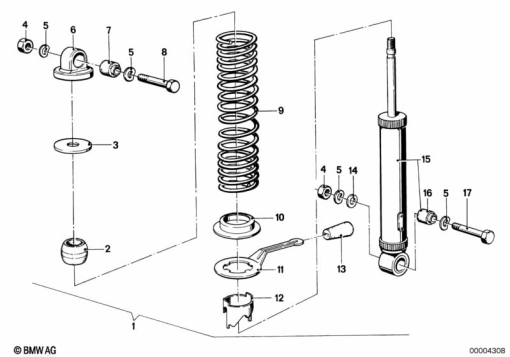

R80 (2477) SPRING STRUT, REAR exploded view parts diagram

Parts List (27)

#	Part Number	Description	Qty
1	33 53 1 235 883	REAR LEFT SPRING STRUT	-
	33 53 1 235 883H	HAGON REAR SHOCK SETAlternative for position 1	-
	33 53 1 235 884	REAR RIGHT SPRING STRUTAlternative for position 1	-
	33 53 1 236 110	REAR LEFT SPRING STRUT - HD WITHOUT FBHÜLSEAlternative for position 1	-
	33 53 1 236 111	REAR RIGHT SPRING STRUT - HD WITHOUT FBHÜLSEAlternative for position 1	-
2	33 53 1 230 280	STOPPER	-
3	33 53 1 237 288	WASHER	-
4	07 11 9 900 079	HEX NUT - M10X1 (to 07/85)	-
	07 11 9 901 301	HEX NUT - M10X1 FLACHAlternative for position 4	-
	07 12 9 922 436	SELF-LOCKING HEX NUT - M10X1Alternative for position 4	-
	07 11 9 915 558	HEX NUT - M10-8-ZNSAlternative for position 4	-
5	07 11 9 932 122	WAVE WASHER - B10-ZNS (to 07/85)	-
	07 11 9 904 463	WAVE WASHER - B10-ZNS3Alternative for position 5	-
6	33 53 2 301 595	SHOCK RETAINER	-
7	33 53 2 301 586	RUBBER MOUNTING	-
-	33 53 2 301 595	SHOCK RETAINER	-
8	07 11 9 901 169	HEX BOLT - M10X45-8.8-ZNS3	-
9	33 53 1 231 893	COIL SPRING - HD	-
10	33 53 1 230 282	GUIDE RING	-
11	33 53 1 230 363	NOTCH LEVER	-
12	33 53 1 230 272	DETENT, LEFT	-
	33 53 1 230 273	DETENT, RIGHTAlternative for position 12	-
13	33 53 1 230 359	HANDLE	-
15	33 53 1 231 498	SHOCK ABSORBER HD-SUSPENSION REAR	-
	33 53 1 240 646	SHOCK ABSORBER, REARAlternative for position 15	-
16	33 53 1 230 258	RUBBER MOUNTING	-
17	33 53 1 230 249	HEX BOLT	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
