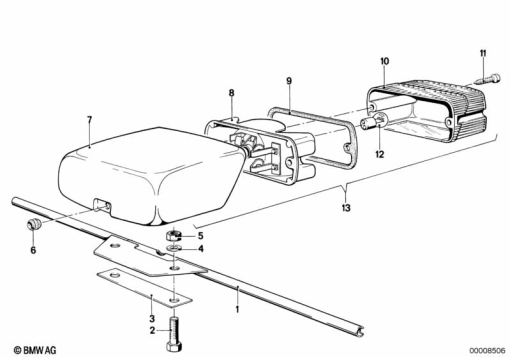

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 23 1 243 618 | BRACKET REAR - 362MM /CR | - | |
63 23 1 243 6181 | BRACKET REAR - 362MM /SSAlternative for position 1 | - | ||
63 23 1 351 587.1 | 326MM SS REAR TURN BRACKETAlternative for position 1 | - | ||
| 2 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 2 | - | ||
| 3 | 63 23 1 352 944 | BASE | - | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 4 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 4 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 4 | - | ||
| 5 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 6 | 63 21 1 350 492 | RUBBER GROMMET | - | |
| 7 | 63 21 9 055 060 | HOUSING - BLACK HOCHGL. (to 09/77) | - | |
63 21 1 350 401 | HOUSING - SCWARZ MATT (09/77 to 09/78)Alternative for position 7 | - | ||
| 8 | 63 21 1 243 213.1 | LED INSERT | - | |
63 21 1 243 213 | REFLECTOR (to 09/78)Alternative for position 8 | - | ||
| 9 | 63 21 1 351 524 | GASKET (to 09/78) | - | |
| 10 | 63 21 1 356 298 | LENS (to 09/78) | - | |
| 11 | 63 21 1 243 687 | FILLISTER HEAD SELF-TAPPING SCREW | - | |
| 12 | 07 11 9 905 336 | BULB | - | |
63 21 7 160 790 | LONGLIFE BULBAlternative for position 12 | - | ||
07 11 9 905 511 | LONGLIFE BULB - 12V 21/5WAlternative for position 12 | - | ||
| 13 | 63 21 1 243 756 | REAR LIGHT - OLSA (from 09/78) | - |
