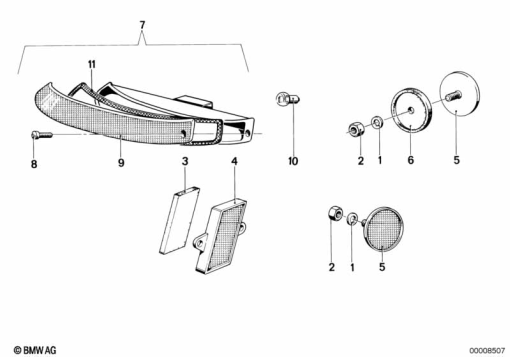

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 2 | 07 11 9 905 710 | HEX NUT - M5 | - | |
| 3 | 63 14 1 356 813 | BASE | - | |
| 4 | 63 14 1 356 802 | REFLECTOR | - | |
| 5 | 63 13 1 354 792 | REFLECTOR, RED | - | |
63 14 1 244 430 | REFLECTOR, YELLOWAlternative for position 5 | - | ||
| 6 | 63 13 1 354 791 | BASE | - |
