R80 (2477) | Lighting

HEADLIGHT

Diagram #63_0342 | 23 parts

100%

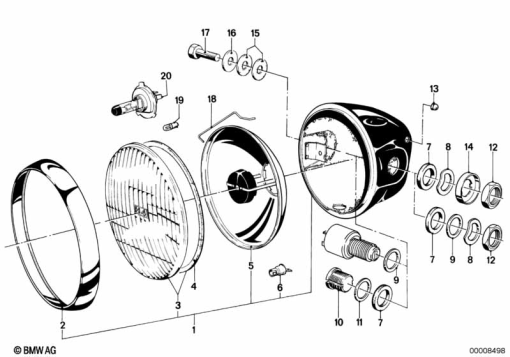

R80 (2477) HEADLIGHT exploded view parts diagram

Parts List (23)

#Part NumberDescriptionQty
1
63 12 1 243 483
HEADLAMP BLACK - H4-
2
63 12 1 356 402
SUPPORTING RING-
63 12 1 356 402R
headlight chrome ring boschAlternative for position 2-
3
63 12 1 358 147
SET: INSTALLING SET LAMP LENS-
4
63 12 1 356 403
GASKET-
5
63 12 1 355 396
REFLECTOR-
6
62 14 8 680 130
BULB SOCKET-
7
63 12 1 357 502
RUBBER WASHER-
8
63 12 1 357 504
WAVE WASHER - 22,5 / 30-
9
12 12 8 049 734
WASHER-
12
61 32 1 243 278
0.01-
61 32 1 243 279
HEX NUTAlternative for position 12-
13
46 51 1 231 084
RUBBER BUFFER-
63 12 1 357 501
RUBBER GROMMETAlternative for position 13-
14
63 12 1 243 033
STEP PLATE-
15
63 12 1 358 129
RUBBER WASHER-
16
63 12 1 244 378
REINFORCEMENT-
17
63 12 1 244 379
HEX BOLT-
18
63 12 1 357 468
CLIP-
19
07 11 9 978 256
BULB-
07 11 9 978 2561
PARKING BULBAlternative for position 19-
07 50 9 063 576
BULB - 12V 4WAlternative for position 19-
20
63 12 1 354 619
BULB - H4-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
