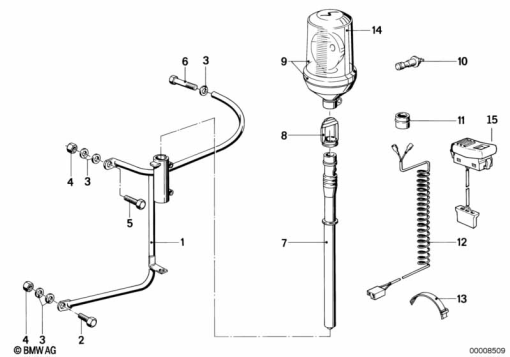

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 1 238 979 | HOLDER | - | |
| 2 | 07 11 9 913 589 | HEX BOLT - M6X25 | - | |
| 3 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 4 | 07 12 9 904 876 | HEX NUT - M6-8-ZNS3 | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 4 | - | ||
| 5 | 07 11 9 913 021 | HEX BOLT - M6X28-8.8-ZNS | - | |
| - | 07 12 9 905 817 | HEX NUT | - | |
| 6 | 07 11 9 902 976 | HEX BOLT - M6X45 8.8 ZNS3 | - | |
| 7 | 71 60 1 243 791 | HOLDER | - | |
| 8 | 61 13 1 243 841 | PLUG | - | |
| 9 | 63 17 1 243 858 | PRIORITY VEHICLE LIGHT, YELLOW | - | |
63 17 2 305 637 | PRIORITY VEHICLE LIGHT, BLUEAlternative for position 9 | - | ||
63 17 2 305 639 | PRIORITY VEHICLE LIGHT, REDAlternative for position 9 | - | ||
| 11 | 61 13 1 379 719 | PLUG-IN SOCKET | - | |
| 12 | 61 12 1 243 785 | WIRING OFFICIAL SIGNAL LIGHT | - | |
| 13 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
| 14 | 63 17 1 243 975 | LIGHT PROTECTION CAP BLUE - LIGHTA | - | |
63 17 1 243 976 | LIGHT PROTECTION CAP YELLOW - LIGHTAAlternative for position 14 | - | ||
63 17 1 243 977 | LIGHT PROTECTION CAP RED - LIGHTAAlternative for position 14 | - | ||
63 17 2 305 638 | LIGHT PROTECTION CAP BLUEAlternative for position 14 | - | ||
| - | 63 17 2 305 637 | PRIORITY VEHICLE LIGHT, BLUE | - | |
| 14 | 63 17 2 305 640 | LIGHT PROTECTION CAP RED | - | |
| - | 63 17 2 305 639 | PRIORITY VEHICLE LIGHT, RED | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
