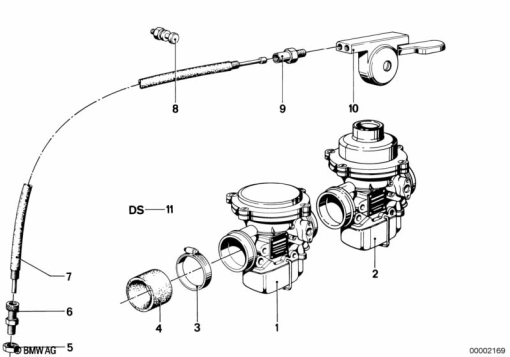

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 11 1 336 978 | CARBURETTOR RIGHT - 64/32/322 (to 11/79) | - | |
13 11 1 336 979 | CARBURETTOR LEFT - 64/32/321 (to 11/79)Alternative for position 1 | - | ||
| 2 | 13 11 1 336 978 | CARBURETTOR RIGHT - 64/32/322 (11/79 to 09/80) | - | |
13 11 1 336 979 | CARBURETTOR LEFT - 64/32/321 (11/79 to 09/80)Alternative for position 2 | - | ||
| 3 | 07 12 9 952 121 | HOSE CLAMP - L=47-54MM | - | |
| 4 | 13 72 1 254 654 | RUBBER GROMMET - 42X52X28 | - | |
| 5 | 07 11 9 921 038 | HEX NUT - M5-4-ZN (to 09/80) | - | |
| 6 | 13 23 1 256 295 | NIPPLE (to 09/80) | - | |
| 7 | 13 23 1 255 976 | CHOKE CABLE LEFT (to 09/80) | - | |
13 23 1 255 976.1 | CHOKE CABLE LEFTAlternative for position 7 | - | ||
13 23 1 255 977 | CHOKE CABLE RIGHT (to 09/80)Alternative for position 7 | - | ||
| 8 | 13 11 9 057 338 | CLAMPING BOLT (to 09/80) | - | |
| 9 | 13 23 1 256 019 | NIPPLE (to 09/80) | - | |
| 10 | 13 23 1 260 191 | COLD START OPERATION (to 09/80) | - | |
| - | 07 11 9 903 257 | SCREW,M6X35 C/S PHILLIPS | - | |
| 11 | 13 11 1 336 951 | SET: GASKET SET CARBURETTOR (to 11/79) | - | |
13 11 1 258 051 | SET: GASKET SET CARBURETTOR (from 11/79)Alternative for position 11 | - |
