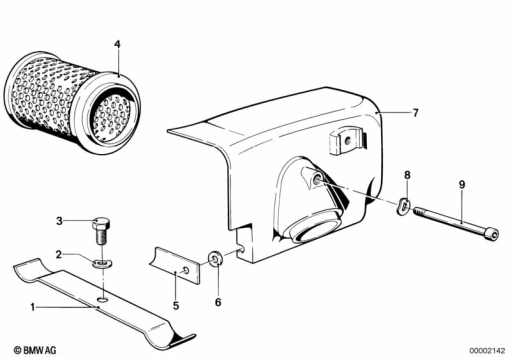

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 72 1 251 169 | CLAMPING SPRING | - | |
| 2 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 3 | 07 11 9 913 652 | HEX BOLT - M8X22 (to 01/85) | - | |
| 4 | 13 72 1 251 048 | AIR FILTER ELEMENT | - | |
13 72 1 254 382P | AIR FILTER K&NAlternative for position 4 | - | ||
| 5 | 13 72 1 335 977 | CLAMPING SPRING | - | |
| 6 | 34 21 3 060 174 | SHIM | - | |
| 7 | 13 72 1 335 690 | AIR CLEANER HOUSING LEFT | - | |
13 72 1 335 691 | AIR CLEANER HOUSING RIGHTAlternative for position 7 | - | ||
13 72 1 253 717 | AIR CLEANER HOUSING LEFT (to 09/80)Alternative for position 7 | - | ||
13 72 1 253 720 | AIR CLEANER HOUSING RIGHT (to 09/80)Alternative for position 7 | - | ||
| 8 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 8 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 8 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 8 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 8 | - | ||
| 9 | 61 21 1 459 734 | SCREW - M6X178 | - | |
13 72 1 254 042.1 | SS SLOTTED AIR BOX SCREWAlternative for position 9 | - |
