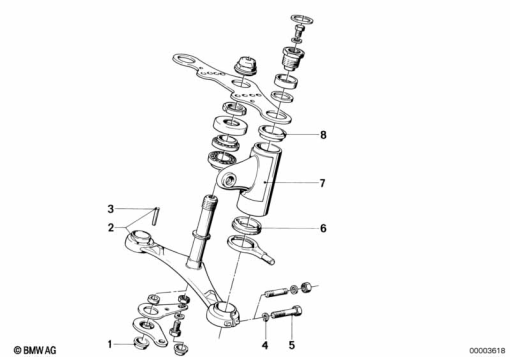

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 31 42 1 233 956 | LOWER FORK CROSS BRACE | - | |
| 3 | 07 11 9 941 470 | ROLL PIN - 5X60 | - | |
| 4 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV | - | |
| 5 | 07 12 9 905 166 | ISA SCREW - M10X45 | - | |
| 6 | 31 42 2 000 385 | RUBBER RING | - | |
| - | 07 11 9 919 672 | FILLISTER-HEAD SCREW | - | |
| 7 | 31 42 1 236 878 | HEAD LIGHT BRACKET LEFT BLACK | - | |
31 42 1 236 879 | HEAD LIGHT BRACKET RIGHT BLACKAlternative for position 7 | - | ||
| 8 | 31 42 1 230 696 | RUBBER RING - 4MM | - |
