R80 (2477) | Front Suspension
FORK BRACE, MOUNTING PARTS

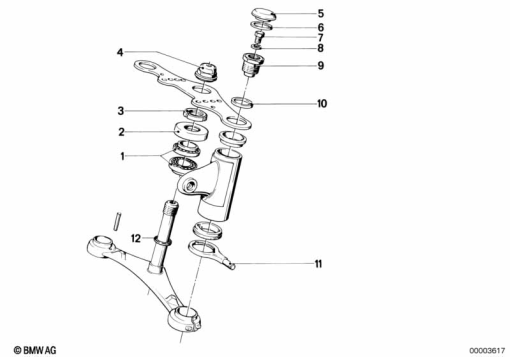

Diagram #31_0312 | 17 parts | 6 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 663 941 | TAPERED ROLLER BEARING - 28X52X16 | 1 | |
| 1 | 07 11 9 985 070SET | STEERING HEAD BEARING SET | 1 | |
| 2 | 31 42 2 000 312 | PROTECTION CAP | 1 | |
| 3 | 31 42 1 232 343 | NUT - M28X1.5 | 1 | |
| 4 | 31 42 1 235 429 | CAP NUT - M28X1.5-ZNS | 1 | |
| 5 | 31 42 1 238 909 | CAP (from 09/77) | 1 | |
| 7 | 07 11 9 919 637 | FILLISTER-HEAD SCREW - M8X12 (to 09/77) | 1 | |
| 7 | 72 11 8 108 712 | FILLISTER-HEAD SCREW - M10X12 (from 09/77) | 1 | |
| 8 | 07 11 9 963 041 | GASKET RING - A8X11,5-AL (to 09/77) | 1 | |
| 8 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL (from 09/77) | 1 | |
| 9 | 31 42 1 238 904 | SPRING RETAINER - M30X1.5 (to 09/80) | 1 | |
| 2 | 72 11 8 108 712 | FILLISTER-HEAD SCREW - M10X12 (to 09/80) | 1 | |
| 2 | 31 42 1 238 909 | CAP (to 09/80) | 1 | |
| 2 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL (to 09/80) | 1 | |
| 10 | 31 42 1 240 179 | WASHER - 31.5X45X2.5 | 1 | |
| 11 | 31 42 1 233 941 | TURN IND HOLDER, CHROME-PLATED, SHORT (to 09/80) | 1 | |
| 12 | 31 42 1 234 509 | RING | 1 |
