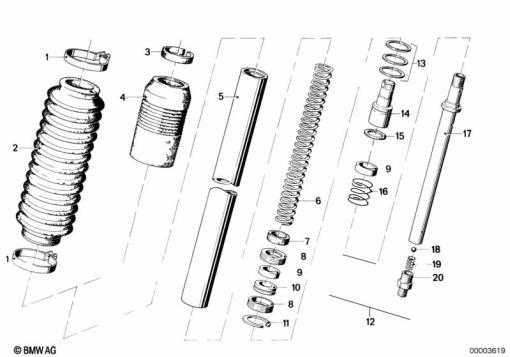

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 952 121 | HOSE CLAMP - L=47-54MM (to 09/80) | 1 | |
| 2 | 31 42 1 234 908 | RUBBER BOOT (to 09/80) | 1 | |
| 3 | 31 42 1 233 038 | FELT (to 09/80) | 1 | |
| 4 | 31 42 1 234 396 | CUP (to 09/80) | 1 | |
| 5 | 31 42 2 000 376 | STANCHION (to 09/80) | 1 | |
| 6 | 31 42 1 231 358 | COMPRESSION SPRING (to 09/80) | 1 | |
| 6 | 31 42 1 232 017 | COMPRESSION SPRING REINFORCED (to 09/80) | 1 | |
| 7 | 31 42 2 000 384 | BUSH (to 09/80) | 1 | |
| 8 | 31 42 1 232 046 | THREADED RING (to 09/80) | 1 | |
| 9 | 31 42 1 232 045 | RING (to 09/80) | 1 | |
| 10 | 31 42 1 234 506 | RING (to 09/80) | 1 | |
| 11 | 07 11 9 934 650 | LOCK RING - 32X1.2 (to 09/80) | 1 | |
| 12 | 31 42 1 234 475 | ABSORBER (to 09/80) | 1 | |
| 13 | 31 42 2 333 753 | SET: RING - SATZ (to 09/80) | 1 | |
| 14 | 31 42 1 232 054 | GUIDE SUPPORT (to 09/80) | 1 | |
| 15 | 31 42 1 232 763 | WASHER (to 09/80) | 1 | |
| 16 | 31 42 1 232 057 | COIL SPRING (to 09/80) | 1 | |
| 17 | 31 42 1 232 051 | PIPE (to 09/80) | 1 | |
| 18 | 07 11 9 986 280 | BALL - 8G20 (to 09/80) | 1 | |
| 19 | 31 42 1 232 061 | COIL SPRING (to 09/80) | 1 | |
| 20 | 31 42 1 232 060 | SCREW PLUG (to 09/80) | 1 |
