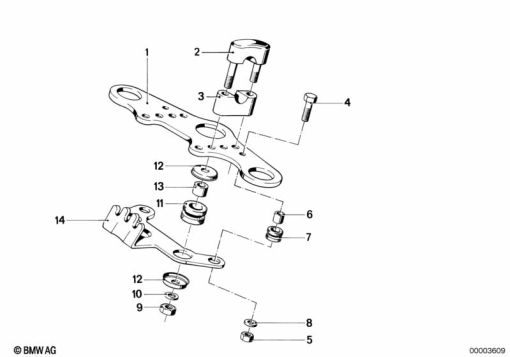

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 1 240 075 | UPPER FORK CROSS BRACE (from 09/77) | - | |
| 2 | 32 71 1 235 879 | CLAMP SUPPORT, BLACK, UPPER (from 09/77) | - | |
| 3 | 32 71 1 232 926 | CLAMP SUPPORT, BLACK, LOWER (from 09/77) | - | |
| 4 | 31 42 1 240 053 | HEXAGON BOLT BLACK - M6X28-8.8-ZN | - | |
| 5 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 01/85) | - | |
07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 5 | - | ||
07 14 7 575 163 | SELF-LOCKING HEX NUTAlternative for position 5 | - | ||
| 6 | 31 42 1 232 242 | BUSH | - | |
| 7 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | - | |
| 8 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
| 9 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
| - | 07 11 9 936 426 | FLAT WASHER | - | |
| 9 | 07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SI | - | |
| 10 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 11 | 31 42 1 232 245 | RUBBER GROMMET | - | |
| 12 | 31 42 1 232 243 | 0.01 | - | |
| 13 | 31 42 1 232 241 | BUSH | - | |
| 14 | 31 42 1 236 883 | HOLDER (from 09/77) | - |
