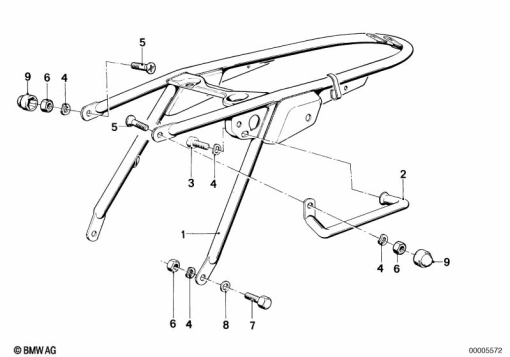

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 2 301 268 | REAR FRAME BLACK | - | |
| 2 | 46 51 1 242 001 | COUNTERSUNK HEAD SCREW | - | |
46 51 1 234 637 | HANDLEAlternative for position 2 | - | ||
| 3 | 07 11 9 901 023 | screw 8x1.25x16 socket head cap | - | |
07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3Alternative for position 3 | - | ||
07 11 9 904 101 | SCREWAlternative for position 3 | - | ||
| 4 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 5 | 46 51 1 242 001 | COUNTERSUNK HEAD SCREW | - | |
| 6 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 6 | - | ||
| 7 | 46 51 1 231 093 | HEX BOLT | - | |
| 8 | 07 11 9 931 684 | WASHER - 8,4 140HV | - | |
| - | 07 11 9 912 436 | HEX BOLT 8X25 V2A POLISHED | - | |
| 9 | 46 51 1 234 785 | PROTECTION CAP - M8 | - |
