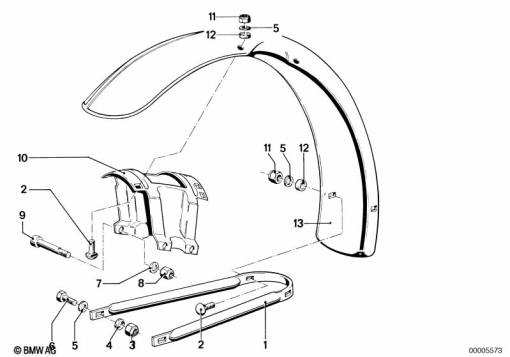

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 1 232 975 | 0.31 | - | |
| 2 | 07 11 9 910 407 | BOLT | - | |
07 11 9 910 408 | SAUCER-HEAD SCREW - M6X16Alternative for position 2 | - | ||
07 11 9 910 4081 | SAUCER-HEAD SCREW, M6 X 16 SSAlternative for position 2 | - | ||
| 3 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 4 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 4 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 4 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 4 | - | ||
| 5 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 5 | - | ||
| 6 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 6 | - | ||
| 7 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 8 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 (to 09/80) | - | |
| 9 | 07 12 9 906 694 | ISA SCREW - M8X55-8.8-ZNNIV (to 09/80) | - | |
07 11 9 901 034 | FILLISTER-HEAD SCREW - M8X50-8.8-ZNS3 (to 09/80)Alternative for position 9 | - | ||
07 11 9 919 651 | SOCKET HEAD CAP SCREWAlternative for position 9 | - | ||
| 10 | 46 61 1 234 907 | BOW (to 09/80) | - | |
| 11 | 07 11 9 924 403 | CAP NUT - M6 | - | |
| 12 | 46 62 1 230 798 | RUBBER WASHER | - | |
| 13 | 46 61 1 234 931 | MUDGUARD FRONT PRIME COATED | - | |
46 61 1 236 767 | MUDGUARD FRONT LONG - IMOLAAlternative for position 13 | - | ||
46 61 1 242 488 | MUDGUARD LONG FRONT PRIME COATEDAlternative for position 13 | - | ||
46 61 2 301 347 | MUDGUARD FRONT LONG - POLIZEIGREENAlternative for position 13 | - | ||
46 61 2 301 350 | MUDGUARD FRONT LONG - GRANADAAlternative for position 13 | - |
