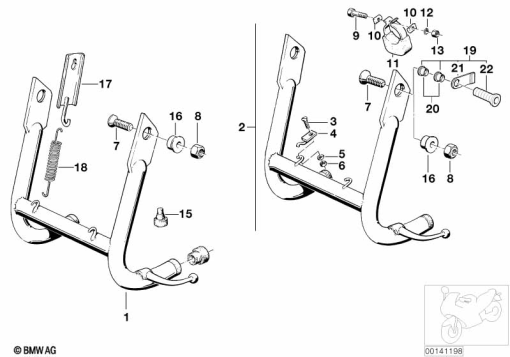

Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46 52 9 056 256 | SET: RETROFIT KIT (09/80 to 01/82) | - | |
| 3 | 07 11 9 903 522 | COUNTERSUNK HEAD SCREW - M6X22-4.8-H-ZNS | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 4 | 46 52 2 302 042 | HOOK | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 5 | 07 11 9 936 425 | WASHER - 6,4 (to 01/85) | - | |
| - | 46 52 2 301 593 | CENTER STAND (to 01/85) | - | |
| 7 | 46 52 2 302 046 | COUNTERSUNK HEAD SCREW - M10X30 | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 8 | 46 52 2 302 049 | HEX NUT - M10-12 | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 9 | 07 11 9 912 199 | HEX BOLT - M5X40 8.8 ZN | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 10 | 46 51 4 034 156 | BASE | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 11 | 23 51 4 034 257 | STOPPER | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 11 | 23 51 4 034 256 | K/S STOP COMP W/SS HARDWARE | - | |
| 12 | 07 11 9 936 107 | TOOTH WASHER - A5,1 | - | |
| - | 46 52 2 301 593 | CENTER STAND | - | |
| 13 | 07 11 9 905 729 | HEX NUT - M5-8-ZNNIV SI | - | |
| 14 | 46 52 1 236 522 | 28.66 | - | |
| - | 07 11 9 905 729 | HEX NUT | - | |
| - | 07 11 9 922 035 | HEX NUT | - | |
| - | 07 11 9 922 036 | HEX NUT | - | |
| 15 | 52 53 1 236 128 | BUMP STOP - H=10 | - | |
| 16 | 46 52 1 236 528 | BUSH - 11MM | - | |
46 52 2 301 704 | BUSH - 13,5MMAlternative for position 16 | - | ||
| 17 | 46 52 1 238 329 | HOLDER | - | |
| 18 | 46 52 1 236 282 | TENSION SPRING - L=97MM (to 01/82) | - | |
| 19 | 46 52 1 454 744 | SET: REPAIR KIT | - | |
| 20 | 46 52 1 454 742 | BUSH | - | |
| 21 | 46 52 1 454 749 | SHACKLE | - | |
| 22 | 07 11 9 900 880 | COUNTERSUNK HEAD SCREW - M10X35 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
