R80 (2477) | Frame, Fairing, Cases

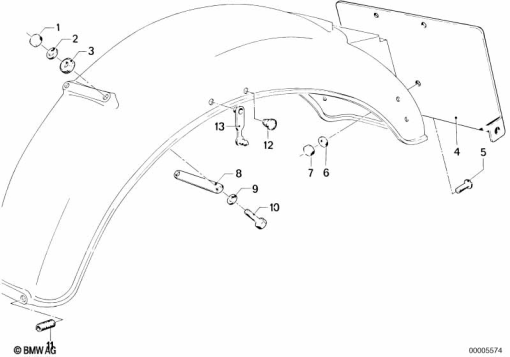

WHEEL COVER, REAR, MOUNTING PARTS
Diagram #46_0077 | 14 parts | 1 available in shop
100%
Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 3 | 46 62 1 230 798 | RUBBER WASHER | 1 | |
| 4 | 46 62 2 303 274 | BRACKET | 1 | |
| 5 | 07 11 9 928 480 | COUNTERSUNK HEAD SCREW - M5X12 | 1 | |
| 6 | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | 1 | |
| 8 | 46 62 1 230 975 | REINFORCEMENT | 1 | |
| 8 | 63 23 1 352 944 | BASE | 1 | |
| 9 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 10 | 07 11 9 904 116 | HEX BOLT - M6X30-8.8-ZNS3 | 1 | |
| 10 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | 1 | |
| 10 | 07 11 9 913 016.1 | STAINLESS 6 X 20 BOLT | 1 | |
| 9 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 12 | 41 35 5 780 222 | BLIND PLUG | 1 | |
| 13 | 61 13 1 356 776 | CABLE HOLDER - 110MM | 1 |
