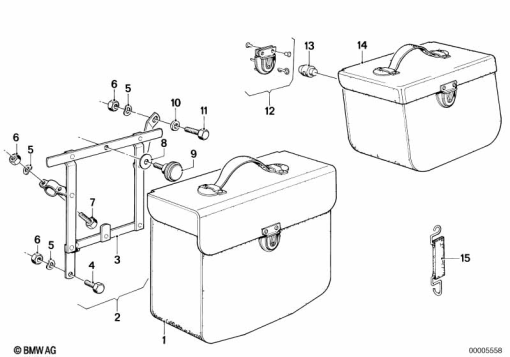

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 1 238 511 | LEATHER SADDLE BAG | - | |
| 2 | 71 60 1 234 031 | SET: SET SADDLE BAG HOLDER | - | |
| 3 | 71 60 1 231 260 | SADDLE BAG HOLDER LEFT | - | |
71 60 1 231 261 | SADDLE BAG HOLDER RIGHTAlternative for position 3 | - | ||
| 4 | 07 11 9 905 524 | HEX BOLT - M6X12-8.8-ZNNIV | - | |
| 5 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 5 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 5 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 5 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 5 | - | ||
| 6 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 7 | 07 11 9 913 015 | HEX BOLT - M6X16-8.8-ZNS | - | |
| 8 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 8 | - | ||
| 9 | 71 60 1 231 263 | KNURLED BOLT | - | |
| 10 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 11 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | - | |
07 11 9 913 016.1 | STAINLESS 6 X 20 BOLTAlternative for position 11 | - | ||
| 12 | 71 60 1 232 278 | LOCK | - | |
| 13 | 71 60 1 231 072 | 0.03 | - | |
| 14 | 71 60 1 233 102 | LEATHER SADDLE BAG LEFT - BLACK | - | |
71 60 1 233 103 | LEATHER SADDLE BAG RIGHT - BLACKAlternative for position 14 | - | ||
| 15 | 71 60 1 237 838 | RUBBER BAND | - |
