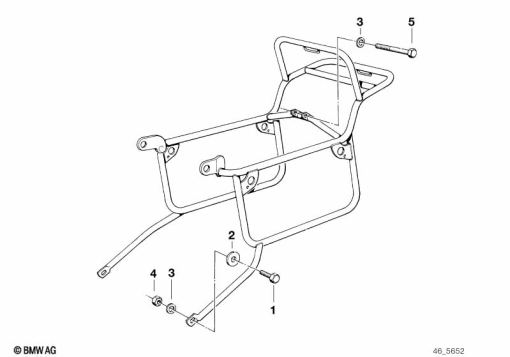

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 913 019 | HEX BOLT - M6X18 | - | |
07 11 9 913 470 | HEX HD SCREW M6X18 SSAlternative for position 1 | - | ||
| 2 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | - | |
07 11 9 936 426 | FLAT WASHERAlternative for position 2 | - | ||
| 3 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 3 | - | ||
| 4 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 5 | 07 11 9 902 976 | HEX BOLT - M6X45 8.8 ZNS3 | - |
