R80 (2477) | Frame, Fairing, Cases

INSTALLING SET COCKPIT TRIM

Diagram #46_0059 | 39 parts

100%

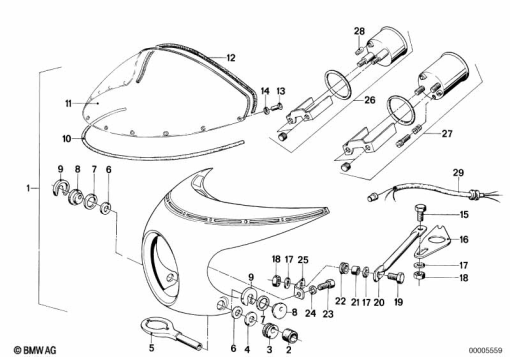

R80 (2477) INSTALLING SET COCKPIT TRIM exploded view parts diagram

Parts List (39)

#Part NumberDescriptionQty
1
46 63 1 237 780
SET: SET OF ADD-ON PARTS FOR COCKPIT TRIM-
2
31 42 1 240 119
BUSH-
5
31 42 1 233 943
TURN IND HOLDER, CHROME-PLATED, LONG-
6
31 42 1 233 693
RING-
7
46 63 1 234 407
RING-
8
46 63 1 234 406
ECCENTRIC-
9
46 63 1 234 405
0.01-
10
46 63 1 233 189
GASKET-
11
46 63 1 235 499
WINDSHIELD - GLASKLAR-
12
46 63 1 235 508
EDGE PROTECTION - L=800MM-
13
46 63 1 233 909
EXPANDING RIVET-
94690A831
BLACK NYLON SCREW 10-32X0.75Alternative for position 13-
94900A411
BLACK NYLON HEX NUT 10-32Alternative for position 13-
46 63 1 233 909S
BOOK SCREWAlternative for position 13-
14
07 11 9 904 247
WASHER - 5-PA 6 SW-
15
07 11 9 913 015
HEX BOLT - M6X16-8.8-ZNS-
16
31 42 1 240 651
LUG BLACK-
17
07 11 9 903 791
WASHER - A6,4-200HV-ZNS3-
18
07 12 9 904 876
HEX NUT - M6-8-ZNS3-
07 14 7 575 163
SELF-LOCKING HEX NUT - M6 ZNNIV SIAlternative for position 18-
-
07 11 9 936 426
FLAT WASHER-
19
31 42 1 240 053
HEXAGON BOLT BLACK - M6X28-8.8-ZN-
20
46 63 1 240 650
ROD - BLACK-
-
07 12 9 905 817
HEX NUT-
21
46 63 1 233 253
BUSH - L= 8,5MM-
22
46 63 1 233 200
RUBBER GROMMET-
23
07 11 9 904 633
HEX BOLT - M6X10-8.8-ZNS3-
24
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 24-
07 11 9 904 496
WAVE WASHER - B6-ZNS3Alternative for position 24-
25
46 63 1 233 201
SUPPORT - CHROME-
46 63 1 240 625
SUPPORT - BLACKAlternative for position 25-
-
07 11 9 932 0701
SS 6MM WASHER-
-
07 11 9 932 073
BLACK SPRING WASHER-
26
62 13 1 357 852
VOLTMETER (to 09/77)-
62 13 1 244 668
VOLTMETER (from 09/77)Alternative for position 26-
27
62 13 1 244 638
CLOCK (from 09/77)-
28
07 11 9 978 279
BULB - 12V 2W-
29
61 12 1 357 591
WIRING ADDITIONAL INSTRUMENTS-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
