R80 (2477) | Frame, Fairing, Cases
COVERING COCKPIT PRIME COATED

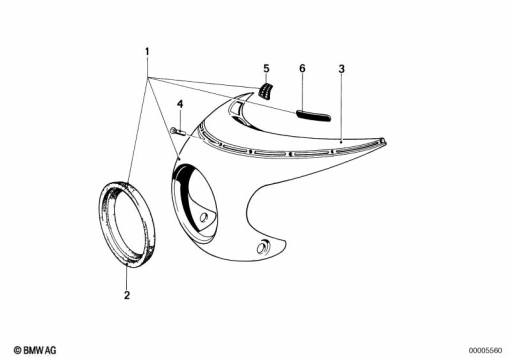

Diagram #46_0060 | 7 parts | 2 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 233 732 | COVERING COCKPIT PRIME COATED | 1 | |
| 2 | 46 63 1 233 186 | GASKET | 1 | |
| 3 | 46 63 1 233 187 | DASHBOARD | 1 | |
| 4 | 07 11 9 949 632 | RIVET - A6X0.4X8-CU | 1 | |
| 5 | 46 63 1 236 236 | LABEL RIGHT | 1 | |
| 6 | 46 63 1 236 235 | LABEL LEFT | 1 | |
| 6 | 46 63 1 453 085 | LABEL RIGHT | 1 |
