Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 1 234 661 | FOOTREST - ECKIGE VARIANTE | - | |
| 2 | 07 11 9 902 902 | HEX BOLT - M10X30-8.8-ZNS3 (to 01/85) | - | |
| 3 | 46 71 1 232 230 | FASTENING ELEMENTS | - | |
| 5 | 07 11 9 932 122 | WAVE WASHER - B10-ZNS (to 01/85) | - | |
| 6 | 07 11 9 915 558 | HEX NUT - M10-8-ZNS | - | |
| 7 | 46 71 1 230 475 | PIN - 327MM | - | |
| 8 | 46 71 2 311 726 | SPACER | - | |
| 9 | 46 51 9 034 125 | FOOTREST, LEFT - 90MM (to 09/77) | - | |
46 51 4 034 260 | FOOTREST, RIGHT - 140MMAlternative for position 9 | - | ||
23 41 1 236 733 | FOOTREST, LEFT - 90MM (from 09/77)Alternative for position 9 | - | ||
46 51 9 034 1251 | FOOT PEG FINE SPLINEAlternative for position 9 | - | ||
46 51 4 034 2601 | PLATED FOOT PEGAlternative for position 9 | - | ||
| 10 | 07 11 9 936 442 | WASHER - 13-140 HV-ZN | - | |
| 11 | 07 11 9 922 940 | HEX NUT - M12X1,5 | - | |
| 12 | 46 71 1 234 660 | FOOTREST PAD | - |

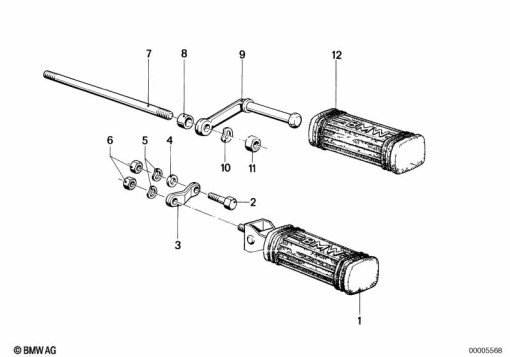

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
