Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 51 1 240 461 | FRONT FRAME BLACK (to 09/80) | - | |
| 2 | 46 52 2 331 805 | TENSION SPRING - L=111MM (to 09/80) | - | |
41 35 5 780 222 | BLIND PLUGAlternative for position 2 | - | ||
| 3 | 46 51 1 241 962 | BUSH | - | |
| 5 | 51 91 1 900 346 | SPRAY BLACK MATT - 400ML | - | |
| - | 46 52 2 301 584 | LEVER | - |

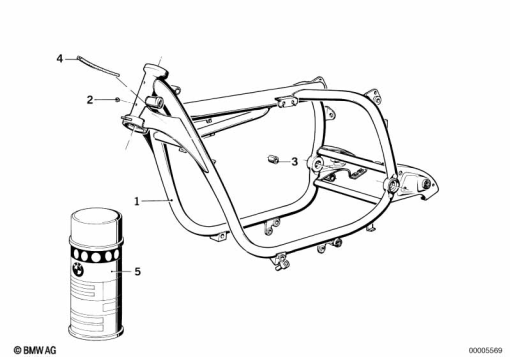

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
