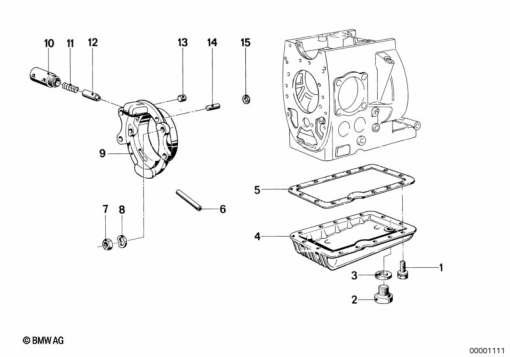

Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 904 527 | HEX BOLT WITH WASHER - M6X20 | - | |
| 2 | 07 11 9 905 428 | SCREW PLUG - M18X1,5-ZNNIV | - | |
| 3 | 07 11 9 963 300 | GASKET RING - A18X22-AL | - | |
| - | 07 11 9 905 428M | DRAIN PLUG W/ MAGNET | - | |
| 4 | 11 13 1 262 723 | OIL PAN (to 09/80) | - | |
| 5 | 11 13 1 338 427 | GASKET | - | |
| 6 | 07 11 9 942 050 | DOWEL PIN - 4X10 | - | |
| - | 11 13 1 338 427S | GASKET OIL PAN | - | |
| 7 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 07/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 7 | - | ||
11 11 1 253 243 | 0.02Alternative for position 7 | - | ||
| 8 | 07 11 9 932 093 | WAVE WASHER - B8 | - | |
07 11 9 932 095 | WAVE WASHERAlternative for position 8 | - | ||
| 9 | 11 11 1 259 593 | BEARING COVER (to 09/78) | - | |
11 11 1 337 293 | BEARING COVER (from 09/78)Alternative for position 9 | - | ||
| 10 | 11 11 1 335 299 | HOLLOW BOLT | - | |
| - | 11 42 1 271 320 | PISTON | - | |
| 11 | 11 41 1 744 324 | COMPRESSION SPRING | - | |
| 12 | 11 42 1 271 320 | PISTON | - | |
| - | 11 11 1 335 299 | HOLLOW BOLT | - | |
| 13 | 11 11 1 744 326 | PLUG | - | |
| 14 | 11 11 1 253 184 | 0.03 | - | |
| 15 | 07 11 9 932 412 | COVER LID - D=16MM (from 09/78) | - |
