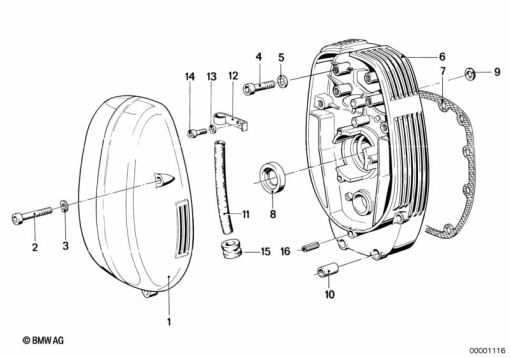

Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 1 335 024 | WHEATHER PROTECTION CAP | - | |
| 2 | 46 61 2 322 495 | FILLISTER-HEAD SCREW - M6X45-8.8 ZNS | - | |
| 3 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 3 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 3 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 3 | - | ||
| 4 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 5 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 6 | 11 14 1 335 020 | BLACK TIMING CASE COVER | - | |
| 7 | 11 14 1 338 428 | GASKET | - | |
| 8 | 11 14 1 337 654 | SHAFT SEAL - 28X47X7 | - | |
11 14 1 337 654 | SHAFT SEALAlternative for position 8 | - | ||
| 9 | 11 14 1 338 429 | WASHER-GASKET | - | |
| 10 | 11 14 1 252 311 | 0.02 | - | |
| 11 | 12 11 1 243 920 | PIPE (to 09/80) | - | |
| 12 | 11 14 1 253 245 | HOLDER (to 09/80) | - | |
| 13 | 07 11 9 919 381 | FILLISTER-HEAD SCREW - M4X12 (to 09/80) | - | |
| 14 | 07 11 9 932 030 | WAVE WASHER - B4 (to 09/80) | - | |
| 15 | 12 11 1 243 952 | RUBBER GROMMET (to 09/80) | - | |
| 16 | 07 11 9 941 485 | ROLL PIN - 6X16 | - |
