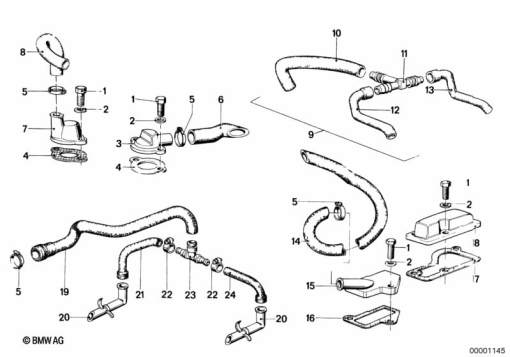

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 920 057 | FILLISTER-HEAD SCREW - M5X20-8.8 ZNS | - | |
| 2 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 5 | 11 15 1 460 935 | HOSE CLAMP - D=19MM | - | |
| 10 | 11 15 1 335 732 | VENT HOSE (to 09/80) | - | |
| 11 | 11 61 1 261 818 | DISTRIBUTION PIECE (to 09/80) | - | |
| 12 | 11 15 1 335 734 | VENT HOSE (to 09/80) | - | |
| 13 | 11 15 1 335 734 | VENT HOSE (to 09/80) | - | |
| 14 | 11 15 1 265 039 | HOSE (to 09/77) | - | |
| 15 | 11 15 1 265 261 | COVER | - | |
| 16 | 11 15 1 338 432 | GASKET | - | |
| 17 | 11 15 1 338 430 | GASKET | - | |
| 18 | 11 15 1 265 183 | COVER | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
