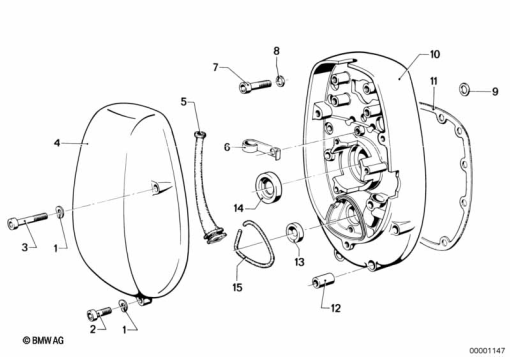

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 1 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 1 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 1 | - | ||
| 2 | 23 11 2 322 407.1 | M6X20 ALLEN BOLT STAINLESS | - | |
07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIVAlternative for position 2 | - | ||
| 3 | 07 11 9 904 509 | FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 | - | |
| 4 | 11 14 1 259 469 | WHEATHER PROTECTION CAP - GESCHLIFFEN | - | |
| 5 | 11 14 1 253 415 | HOSE | - | |
| 6 | 11 14 1 253 245 | HOLDER | - | |
| 7 | 07 12 9 903 809 | ISA SCREW - M6X40 | - | |
| 8 | 07 11 9 904 606 | WASHER - 6-200 HV-ZNS3 | - | |
| 9 | 11 14 1 338 429 | WASHER-GASKET | - | |
| 10 | 11 14 1 335 246 | TIMING CASE COVER (from 09/77) | - | |
| 11 | 11 14 1 338 428 | GASKET | - | |
| 12 | 11 14 1 252 311 | 0.02 | - | |
| 13 | 23 12 7 705 086 | SHAFT SEAL - 20X32X8 | - | |
| 14 | 11 14 1 337 654 | SHAFT SEAL - 28X47X7 | - | |
| 15 | 65 61 2 300 295 | GASKET - 215 MM | - | |
11 14 1 262 644 | SEAL STRIP 1976-1978 MODELSAlternative for position 15 | - | ||
| - | 11 14 1 337 654 | SHAFT SEAL | - |
