R80 (2477) | Engine

COVER

Diagram #11_1753 | 14 parts

100%

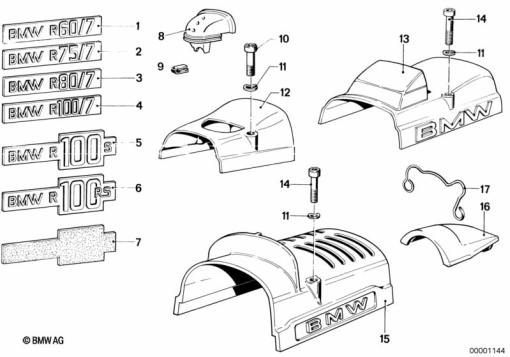

R80 (2477) COVER exploded view parts diagram

Parts List (14)

#Part NumberDescriptionQty
3
51 14 1 335 268
TYPE PLATE (to 09/78)-
8
11 14 1 262 849
SUCTION HOOD (to 09/78)-
9
11 14 1 254 398
CLAMP (to 09/78)-
10
07 11 9 904 509
FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 (to 09/78)-
11
07 11 9 932 0701
SS 6MM WASHER-
07 11 9 932 073
SPRING WASHER BLACK - B6-ZNAlternative for position 11-
07 11 9 932 073
BLACK SPRING WASHERAlternative for position 11-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 11-
13
11 14 1 335 261
COVER (09/78 to 09/80)-
-
07 12 9 905 539
ISA SCREW - M6X50-8.8-ZNNIV (09/78 to 09/80)-
14
07 12 9 905 539
ISA SCREW - M6X50-8.8-ZNNIV-
15
11 14 1 337 481
COVER - "SLS" (from 11/79)-
16
11 14 1 255 793
COVER (to 09/78)-
17
11 14 1 337 171
WIRE-STRAP (to 09/78)-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
