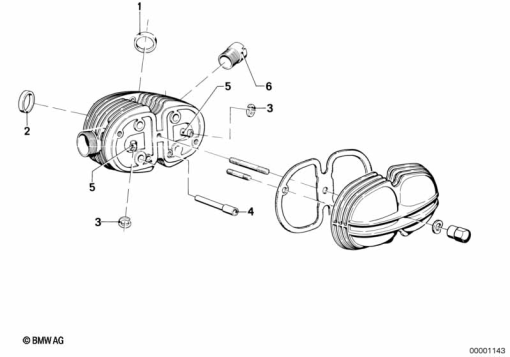

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 1 256 004 | VALVE SEAT RING INTAKE - +0,2 | - | |
11 12 1 256 008 | VALVE SEAT RING INTAKE - +0.4Alternative for position 1 | - | ||
| 2 | 11 12 1 337 899 | VALVE SEAT INSERT EXHAUST LEAD-FREE - +0,2 | - | |
11 12 1 337 900 | VALVE SEAT INSERT EXHAUST LEAD-FREE - +0,4Alternative for position 2 | - | ||
| 3 | 11 12 1 744 332 | LOCK RING | - | |
| 4 | 11 12 1 262 259 | PROTECTION TUBE | - | |
| 5 | 11 12 1 338 708 | VALVE GUIDE - 14.06 | - | |
11 12 1 338 711 | VALVE GUIDE - 14.25Alternative for position 5 | - | ||
| 6 | 11 12 1 257 396 | CONNECTOR - 64/32 - M42X1.5 | - |
