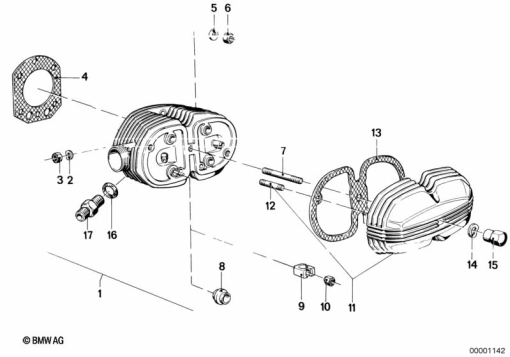

Parts List (30)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 1 337 869 | CYLINDER HEAD LEFT (to 11/79) | - | |
11 12 1 337 870 | CYLINDER HEAD RIGHT (to 11/79)Alternative for position 1 | - | ||
11 12 1 337 874 | CYLINDER HEAD LEFT - SLS (from 11/79)Alternative for position 1 | - | ||
11 12 1 337 875 | CYLINDER HEAD RIGHT - SLS (from 11/79)Alternative for position 1 | - | ||
| 2 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 2 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 2 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 2 | - | ||
| 3 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 4 | 11 12 1 338 716 | CYLINDER HEAD GASKET ASBESTOS-FREE | - | |
| 5 | 11 12 1 336 872 | WASHER - 3,5 ZNS | - | |
| 6 | 11 11 0 001 104.1 | M10 NUT 14MM WRENCH V2A | - | |
11 11 0 001 104C | HEX NUTAlternative for position 6 | - | ||
11 11 0 001 104S | NUT CYLINDER BASEAlternative for position 6 | - | ||
11 11 0 001 104 | HEX NUT - BLACK 14Alternative for position 6 | - | ||
11 11 1 263 903 | HEX NUTAlternative for position 6 | - | ||
| 7 | 07 12 9 908 142 | STUD BOLT - M8X70 | - | |
| 8 | 11 12 1 261 405 | SUSPENSION | - | |
| 9 | 11 12 1 258 264 | SUPPORT FOR ROCKER ARM SHAFT | - | |
| 10 | 11 12 7 650 402 | HEX NUT - M10 | - | |
| 11 | 11 12 1 263 761 | CYLINDER HEAD COVER, SILVER, RIGHT | - | |
11 12 1 263 762 | CYLINDER HEAD COVER, SILVER, LEFTAlternative for position 11 | - | ||
| 12 | 07 12 9 904 546 | STUD BOLT - M6X40 | - | |
| 13 | 11 12 1 338 426 | GASKET - ASBESTFREI | - | |
| 14 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 15 | 11 12 0 023 160 | TAPPET COVER CAP NUT SS | - | |
11 12 1 744 330 | CAP NUT - M8-CRAlternative for position 15 | - | ||
11 12 1 744 330.1 | TAPPET CVR NUTAlternative for position 15 | - | ||
| 16 | 07 11 9 963 252 | GASKET RING - A16X20-AL (from 11/79) | - | |
| 17 | 07 11 9 972 501 | CONNECTOR - 10X16 (from 11/79) | - |
