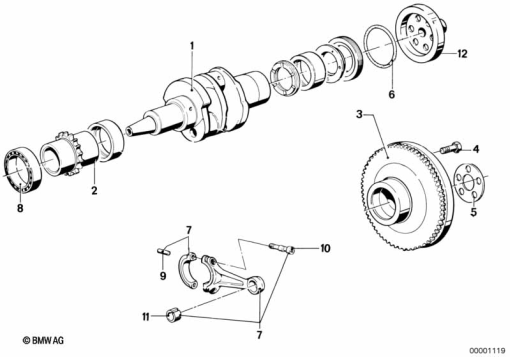

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 21 1 338 171 | CRANKSHAFT - M11X1,5 | - | |
| 2 | 11 21 1 250 198 | SPROCKET (to 09/78) | - | |
11 21 1 335 586 | SPROCKET (from 09/78)Alternative for position 2 | - | ||
| 3 | 11 22 1 336 380 | FLYWHEEL (to 09/80) | - | |
| 4 | 11 22 1 262 060 | HEX BOLT - M11X1.5 | - | |
| 6 | 11 22 1 337 093 | O-RING - 59X3 (from 09/78) | - | |
| 7 | 11 24 1 338 152 | CONNECTING ROD - 1XYELLOW | - | |
11 24 1 338 153 | CONNECTING ROD - 1XWHITEAlternative for position 7 | - | ||
| 8 | 07 11 9 981 722 | GROOVED BALL BEARING - 16007 C3 | - | |
| - | Ball bearing 16007 C3. | Ball bearing 16007 C3. | - | |
| 9 | 11 24 1 254 819 | DOWEL PIN | - | |
| 10 | 11 24 1 337 553 | CONNECTING ROD BOLT | - | |
| 11 | 11 24 0 618 100 | CONNECTING ROD BUSH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
