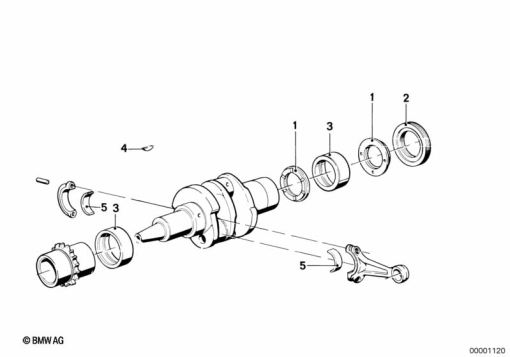

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 1 256 973 | STOP DISK - 2.483-2.530 | - | |
11 11 1 256 974 | STOP DISK - 2.530-2.578Alternative for position 1 | - | ||
11 11 1 256 975 | STOP DISK - 2.578-2.626Alternative for position 1 | - | ||
11 11 1 256 976 | STOP DISK - 2.626-2.673Alternative for position 1 | - | ||
| 2 | 11 11 1 338 342 | SHAFT SEAL - 80X100X10 | - | |
| 3 | 11 11 1 250 155 | BEARING BUSH RED - 0.00 | - | |
11 11 1 255 285 | BEARING BUSH BLUE - 0.00Alternative for position 3 | - | ||
11 11 1 337 614 | BEARING BUSH YELLOW - 0.00Alternative for position 3 | - | ||
11 11 1 265 437 | BEARING BUSH GREEN - 0.00Alternative for position 3 | - | ||
11 11 1 254 788 | BEARING BUSH RED - 0.25Alternative for position 3 | - | ||
11 11 1 255 286 | BEARING BUSH BLUE - 0.25Alternative for position 3 | - | ||
11 11 1 337 725 | BEARING BUSH YELLOW - 0.25Alternative for position 3 | - | ||
11 11 1 337 724 | BEARING BUSH GREEN - 0.25Alternative for position 3 | - | ||
11 11 1 254 789 | BEARING BUSH RED - 0.50Alternative for position 3 | - | ||
11 11 1 255 287 | BEARING BUSH BLUE - 0.50Alternative for position 3 | - | ||
11 11 1 255 288 | BEARING BUSH RED - 0.75Alternative for position 3 | - | ||
11 11 1 255 289 | BEARING BUSH BLUE - 0.75Alternative for position 3 | - | ||
| 4 | 07 11 9 951 480 | WOODRUFF KEY - 5X6.5 | - | |
| 5 | 11 24 1 258 460 | BEARING SHELL - 0.00 | - | |
11 24 1 258 419 | BEARING SHELL - 0.25Alternative for position 5 | - | ||
11 24 1 258 420 | BEARING SHELL - 0.50Alternative for position 5 | - | ||
11 24 1 258 421 | BEARING SHELL - 0.75Alternative for position 5 | - |
