Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 904 527 | HEX BOLT WITH WASHER - M6X20 | - | |
| 2 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 2 | - | ||
| 3 | 11 42 1 263 345 | OIL FILTER COVER | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| 4 | 11 42 1 338 600 | GASKET ASBESTOS FREE | - | |
| 5 | 11 42 1 264 160 | O-RING - 44X4 | - | |
| 6 | 11 42 1 336 895 | WASHER - 45.3X51.9X0.3 | - | |
| 7 | 11 42 1 250 285 | O-RING - 13X3.5 | - | |
| 8 | 11 42 1 337 575 | OIL FILTER OIL COOLER | - | |
| - | 11 42 1 335 396 | SET: INSTALLING SET OIL COOLER | - | |
| 8 | 11 42 1 337 198 | Oil Filter | - | |
11 42 1 337 570 | OIL FILTERAlternative for position 8 | - | ||
| - | 11 42 1 335 396 | SET: INSTALLING SET OIL COOLER | - | |
| 8 | 11 42 1 337 572 | OIL FILTER STRAIGHT | - | |
| 10 | 11 43 1 337 542 | DIPSTICK | - | |
| - | 11 43 1 337 308 | O-RING - 25X2 | - | |
| 10 | 11 43 1 337 5423 | DIP STICK/TEMP R65-R100RT | - | |
| 11 | 07 11 9 963 418 | GASKET RING - A26X31-AL | - | |
11 43 1 337 308 | O-RING - 25X2Alternative for position 11 | - |

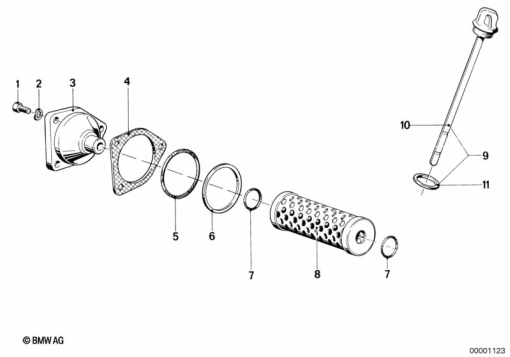

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
