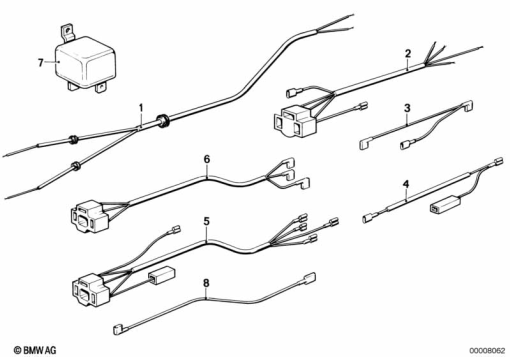

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 12 1 243 206 | WIRING TURN SIGNAL FRONT | - | |
| 2 | 61 12 1 358 177 | WIRING HEAD LIGHT (to 09/80) | - | |
61 13 1 352 234 | PLUG TERMINAL FOR HEAD LIGHTAlternative for position 2 | - | ||
61 13 1 352 577 | CABLE SOCKET FEMALE - B=9,1/L=16,8Alternative for position 2 | - | ||
| 3 | 61 12 1 358 176 | WIRE PARKING LIGHT | - | |
| 4 | 61 12 1 243 311 | WIRING CONTINUOUS LIGHT | - | |
| 5 | 61 12 1 357 456 | WIRING HEAD LIGHT | - | |
61 13 1 352 234 | PLUG TERMINAL FOR HEAD LIGHTAlternative for position 5 | - | ||
61 13 1 352 577 | CABLE SOCKET FEMALE - B=9,1/L=16,8Alternative for position 5 | - | ||
| 6 | 61 12 1 243 308 | WIRING CONTINUOUS LIGHT | - | |
| 8 | 61 11 1 243 088 | WIRING CONTINUOUS LIGHT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
