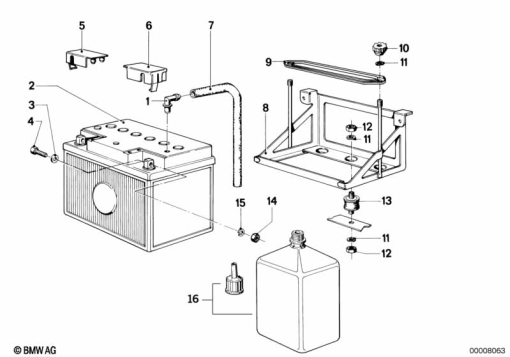

Parts List (24)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 1 243 943 | HOSE CONNECTOR (to 08/83) | - | |
| 2 | 53030 | YUASA BATTERY | - | |
61 21 1 459 650 | EMPTY BATTERY - 12V 25AHAlternative for position 2 | - | ||
| 3 | 61 21 1 459 657 | WASHER - A6,4 | - | |
| 4 | 61 21 1 459 655 | HEX BOLT - M6X20 | - | |
| 5 | 61 21 1 357 514 | COVERING CAP (to 08/83) | - | |
| 6 | 61 21 1 357 515 | COVERING CAP (to 08/83) | - | |
| 7 | 61 21 2 306 299 | HOSE - 1000 MM | - | |
| 8 | 61 21 1 233 076 | BATTERY HOLD DOWN | - | |
| 9 | 61 21 1 233 073 | BATTERY HOLD DOWN | - | |
| 10 | 61 21 1 233 457 | RING NUT | - | |
SSA33457 | STAINLESS THUMB NUT W/ WASHERAlternative for position 10 | - | ||
| 11 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 11 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 11 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 11 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 11 | - | ||
| 12 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - | |
| 13 | FRA33028 | RUB. MNT. BAT BOX 8-15-8MM | - | |
61 21 1 233 028 | RUBBER MOUNTING (to 09/77)Alternative for position 13 | - | ||
61 21 1 243 530 | RUBBER MOUNTING (from 09/77)Alternative for position 13 | - | ||
| 14 | 61 21 1 459 656 | HEX NUT - M6 | - | |
| 15 | 61 21 7 670 327 | SPRING WASHER - B6 | - | |
| 16 | 61 21 9 056 972 | BATTERY ACID PARCEL (6 BOTTLES) - 25AH-30AH | - |
