R80 (2477) | Electrical System

RELAY

Diagram #61_0231 | 7 parts

100%

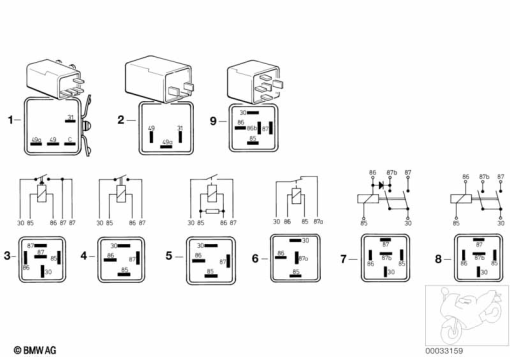

R80 (2477) RELAY exploded view parts diagram

Parts List (7)

#Part NumberDescriptionQty
1
61 31 1 358 194
HAZARD WARNING RELAY (to 09/80)-
3
61 31 1 243 207
STARTER RELAY-
5
61 31 1 373 585
RELAY - YELLOW (to 09/78)-
61 31 1 373 588
MINI-RELAY (to 09/78)Alternative for position 5-
6
61 31 1 373 916
RELAY (to 09/80)-
7
61 36 7 727 672
MINI-RELAY-
8
61 32 1 358 198
RELAY-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
