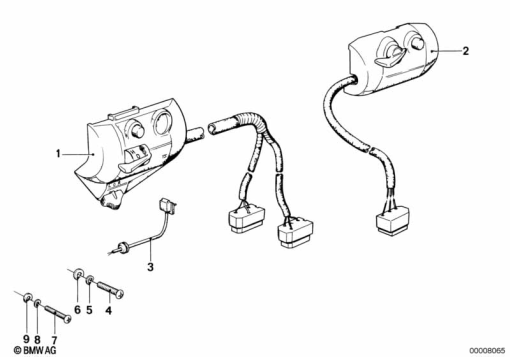

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 1 243 804 | COMBINATION SWITCH LEFT - L=230 (from 09/78) | - | |
61 31 1 243 864 | COMBINATION SWITCH LEFT - L=230 (from 09/78)Alternative for position 1 | - | ||
61 31 1 243 806 | COMBINATION SWITCH LEFT - L=520 (from 09/78)Alternative for position 1 | - | ||
61 31 1 243 805 | COMBINATION SWITCH LEFT - L=380 (from 09/78)Alternative for position 1 | - | ||
61 31 1 243 866 | COMBINATION SWITCH LEFT - L=520 (from 09/78)Alternative for position 1 | - | ||
61 31 1 243 865 | COMBINATION SWITCH LEFT - L=380 (from 09/78)Alternative for position 1 | - | ||
| 2 | 61 31 1 243 810 | COMBINATION SWITCH RIGHT (from 09/78) | - | |
61 31 1 243 812 | COMBINATION SWITCH RIGHT - L=380 (from 09/78)Alternative for position 2 | - | ||
| 3 | 61 31 1 243 403 | CLUTCH SWITCH (from 09/78) | - | |
| 4 | 07 11 9 907 616 | FILLISTER HEAD SCREW - M4X10-4.8-H (from 09/78) | - | |
| 5 | 07 11 9 932 100 | WAVE WASHER - B4 (from 09/78) | - | |
07 11 9 932 030 | WAVE WASHER - B4 (from 09/78)Alternative for position 5 | - | ||
| 6 | 07 11 9 904 205 | WASHER - 9X4,3X0,8-200HV (from 09/78) | - | |
07 11 9 931 637 | FLAT WASHERAlternative for position 6 | - | ||
| 7 | 07 11 9 907 604 | FILLISTER HEAD SCREW - M3X10-4.8-H-ZN (from 09/78) | - | |
| 8 | 07 11 9 932 013 | WAVE WASHER - B3 (from 09/78) | - | |
| 9 | 07 11 9 931 015 | WASHER - A3,2 (from 09/78) | - |
