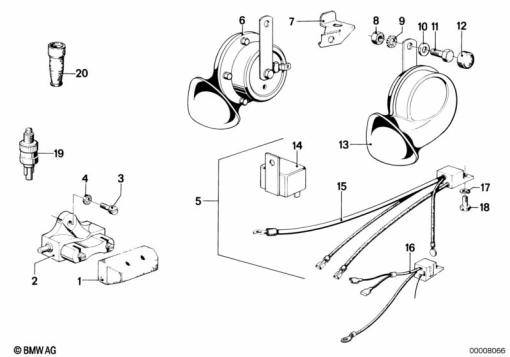

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 1 351 249 | 0.01 | - | |
| 2 | 61 31 1 353 684 | STOP LIGHT SWITCH | - | |
61 31 1 353 684SC | 3.5X6MM SLOTTED SCREW FOR REAR BRAKE LIGHT SWITCHAlternative for position 2 | - | ||
| 3 | 07 11 9 906 734 | FILLISTER HEAD SELF-TAPPING SCREW - ST3,9X16 | - | |
07 11 9 919 381 | FILLISTER-HEAD SCREW - M4X12Alternative for position 3 | - | ||
| 4 | 07 11 9 936 042 | TOOTH WASHER - J4,3 | - | |
| 5 | 61 33 1 243 281 | SET: INSTALLING SET DOUBLE FANFARE | - | |
| 6 | 61 33 2 306 799 | HORN - 510HZ | - | |
| 7 | 61 33 1 243 239 | BRACKET | - | |
| 8 | 07 11 9 904 032 | HEX NUT - M8-8-ZNS3 (to 01/85) | - | |
07 11 9 905 515 | HEX NUT - M8-8-ZNNIV SIAlternative for position 8 | - | ||
| 9 | 07 11 9 936 191 | TOOTH WASHER - A8,2 | - | |
| 11 | 07 11 9 902 900 | HEX BOLT - M8X16-8.8-ZNS3 (to 09/80) | - | |
| 12 | 46 51 1 234 785 | PROTECTION CAP - M8 | - | |
| 13 | 61 33 2 306 798 | HORN - 410HZ | - | |
| 14 | 61 31 1 373 585 | RELAY - YELLOW | - | |
61 31 1 373 588 | MINI-RELAYAlternative for position 14 | - | ||
| 15 | 61 12 1 243 249 | WIRING DUAL HORN | - | |
| 16 | 61 12 1 243 261 | WIRING DUAL HORN | - | |
| 17 | 07 11 9 932 098 | WAVE WASHER - B5 | - | |
| 18 | 12 31 2 322 411 | FILLISTER-HEAD SCREW - M5X8 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
