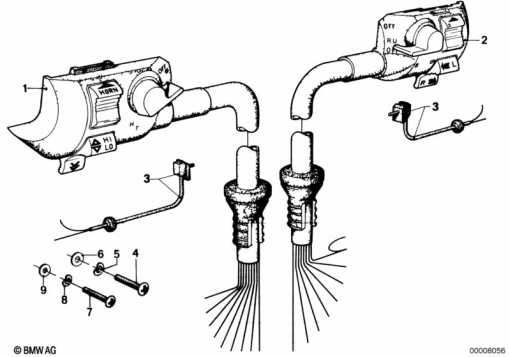

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 1 243 245 | COMBINATION SWITCH RIGHT - L=230MM (to 09/78) | 1 | |
| 1 | 61 31 1 243 598 | COMBINATION SWITCH LEFT - L=230 (to 09/78) | 1 | |
| 1 | 61 31 1 243 247 | COMBINATION SWITCH LEFT - L=230MM (to 09/78) | 1 | |
| 1 | 61 31 1 243 732 | COMBINATION SWITCH LEFT - L=520 (to 09/78) | 1 | |
| 1 | 61 31 1 243 597 | COMBINATION SWITCH LEFT - L=380 (to 09/78) | 1 | |
| 1 | 61 31 1 243 248 | COMBINATION SWITCH LEFT - L=380MM (to 09/78) | 1 | |
| 1 | 61 31 1 243 731 | COMBINATION SWITCH LEFT - L=520 (to 09/78) | 1 | |
| 2 | 61 31 1 243 730 | COMBINATION SWITCH RIGHT - L=520 (to 09/78) | 1 | |
| 2 | 61 31 1 243 246 | COMBINATION SWITCH RIGHT - L=380MM (to 09/78) | 1 | |
| 3 | 61 31 1 243 403 | CLUTCH SWITCH (to 09/78) | 1 | |
| 4 | 07 11 9 907 616 | FILLISTER HEAD SCREW - M4X10-4.8-H (to 09/78) | 1 | |
| 6 | 07 11 9 904 205 | WASHER - 9X4,3X0,8-200HV (to 09/78) | 1 | |
| 6 | 07 11 9 931 637 | FLAT WASHER | 1 | |
| 7 | 07 11 9 907 604 | FILLISTER HEAD SCREW - M3X10-4.8-H-ZN (to 09/78) | 1 | |
| 8 | 07 11 9 932 013 | WAVE WASHER - B3 (to 09/78) | 1 | |
| 9 | 07 11 9 931 015 | WASHER - A3,2 (to 09/78) | 1 |
